Iv Catheters

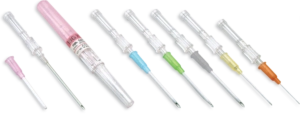

IV Catheters

  • Easy dispenser pack

  • Functional design casing permitting one action opening and no rolling

  • Color-coded casing cap allows for easier identification of catheter size

  • Translucent catheter hub and flashback chamber allows for easy detection of blood flashback at vein insertion

  • Radio-opaque catheter

  • Precision finished PTFE catheter assures stable flow and eliminates catheter tip kink during venipuncture

  • Can be connected to syringe by removing filter cap to expose Luer taper end

  • Use of hydrophobic membrane filter eliminates blood leakage

  • Close and smooth contact between catheter tip and inner needle enables safe and smooth venipuncture

  • Crimped smooth engagement between catheter and hub, without use of adhesive, helps eliminate blood residuals and helps reduce blood coagulation or hemolysis

IV CATHETERS
Catalog No. Size Gauge Outside Diameter (mm) Total Length (mm) Hub Color
26726 14G x 1 1/4″ 14G 1.65 mm 37.9 mm Orange
26729 14G x 2″ 14G 1.65 mm 54.5 mm Orange
26730 16G x 1 1/4″ 16G 1.25 mm 36.5 mm Medium Grey
26731 16G x 2″ 16G 1.25 mm 54.5 mm Medium Grey
26735 18G x 1 1/4″ 18G 0.90 mm 35.4 mm Green
26736 18G x 1 1/2″ 18G 0.90 mm 41.4 mm Green
26738 18G x 2″ 18G 0.90 mm 53.4 mm Green
26741 20G x 1″ 20G 0.70 mm 27.7 mm Pink
26742 20G x 1 1/4″ 20G 0.70 mm 34.7 mm Pink
26743 20G x 2″ 20G 0.70 mm 52.7 mm Pink
26746 22G x 1″ 22G 0.55 mm 27.4 mm Blue
26751 24G x 3/4″ 24G 0.45 mm 21.1 mm Yellow
50/box, 200/case
